Synchronize
Sometimes users want to look at the relationship between images without any changes (transformation) of the original images. i2k Retina Pro allows users to do this using Synchronize processing
select

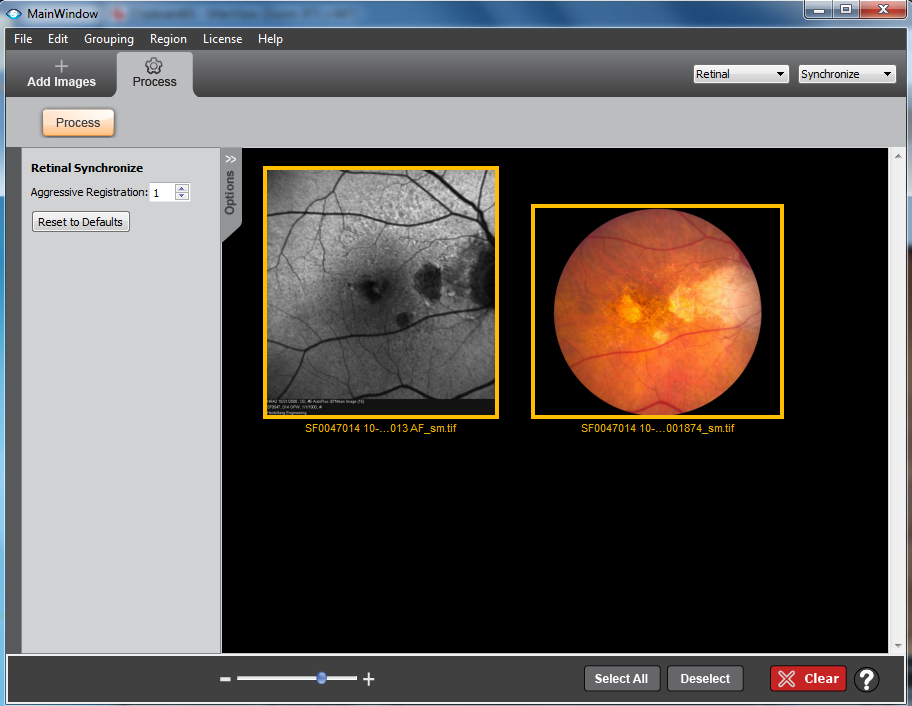

In this example, a color red free< fundus image and a color fundus image have been added to the display and selected. On the upper right, the Synchronize processing type has been selected. Following a user click of the Process button, i2k Retina Pro runs the registration computation, but does not transform the images. Instead, it immediately launches the viewer in Sync Scroll mode:
select
The two original images are shown side-by-side. Any mouse click on one image will show the corresponding location in the other image. The user can zoom in on each image individually. This capability in i2k Viewer will soon be expanded to show more than two images at once. This already exists in the i2k Retina Pro software library, and users are provided with separate (open) source code that computes the inter-image mapping necessary for a custom synchronized display.
